Alarm with Velbus
If you're someone who values convenience and wants a comprehensive security system for your home, the Velbus home automation system offers an all-in-one solution that seamlessly integrates with your existing setup.
With this system, you can have an alarm that not only detects intrusion but also alerts you to other potentially dangerous situations like fires, floods, and frost. And in addition, in real-time, you'll be notified through an SMS or email.
One of the best things about this system is that it doesn't require a complicated setup or installation. With only one VMB4RYLD relay and an input module with a channel per detector, you can easily and affordably have an alarm that's far more comprehensive than other non-integrated systems.
Another great feature of this system is that it can accommodate any tension-less detector. And, if you have a tension carrying detector, you can easily convert it to a tension-less one with an intermediate relay. Plus, with no limit to the number of detectors you can add to the system, you can cover your entire home and property.
The timings for this system are based on Incert alarm systems, which means that you can be confident that it meets the highest industry standards for alarm systems. And, with a separate battery for the siren and flash, automatic battery charge, and fail-safe arming, you can be sure that your system is always operational and ready to respond in case of an emergency.
Each detector can be set to trigger the alarm immediately or with a delay, and you can also inhibit any detector as needed. And, if you only want to be notified of specific alarms, like a frost alarm, you can configure the system to send you an SMS or email for those alarms only. Temperature sensing can be done through your existing VMBGPxxx/VMBELxxx built-in temperature sensors.
Finally you have full control and monitoring through VMBGPxxx/VMBELxxx and Home Center. You can be sure that your alarm system is fully integrated with your Velbus home automation system and stays under your complete control.
| Category | Nature | Value |
| Input detection (tension-less) | Direct detection | VMB7IN 1 channel / detector |
| Delayed detection | VMB7IN 1 channel / detector | |
| Temperature alarm | VMBGPxxx/VMBELxxx t° sensor | |
| Input detection (tension carrying) | Convert to tension-less | auxiliary relay |
| Input timings | Arm alarm | 3 sec |
| Dis-Arm alarm | 3 sec | |
| Direct trigger | 0 sec | |
| Delayed trigger | 19 sec | |
| Output timings | Pre-alarm warning buzzer | during delayed trigger timing |
| Alarm trigger (horn) | as long as detectors are triggered | |
| Alarm trigger runout (horn) | 2 min after last trigger detected | |
| Alarm trigger (flash) | stays on until manual reset | |
| Alarm trigger (SMS / email) | once at start of detection | |
| Detectors | PIR-sensors Velbus | can switch between normal/alarm |
| PIR-sensors SOLIVI | power-fed from the bus | |
| Temp-sensors | VMBGPxxx or VMBELxxx t° sensor | |
| Other sensors | convert to tension-less output |
See here a graphical representation of the timings :

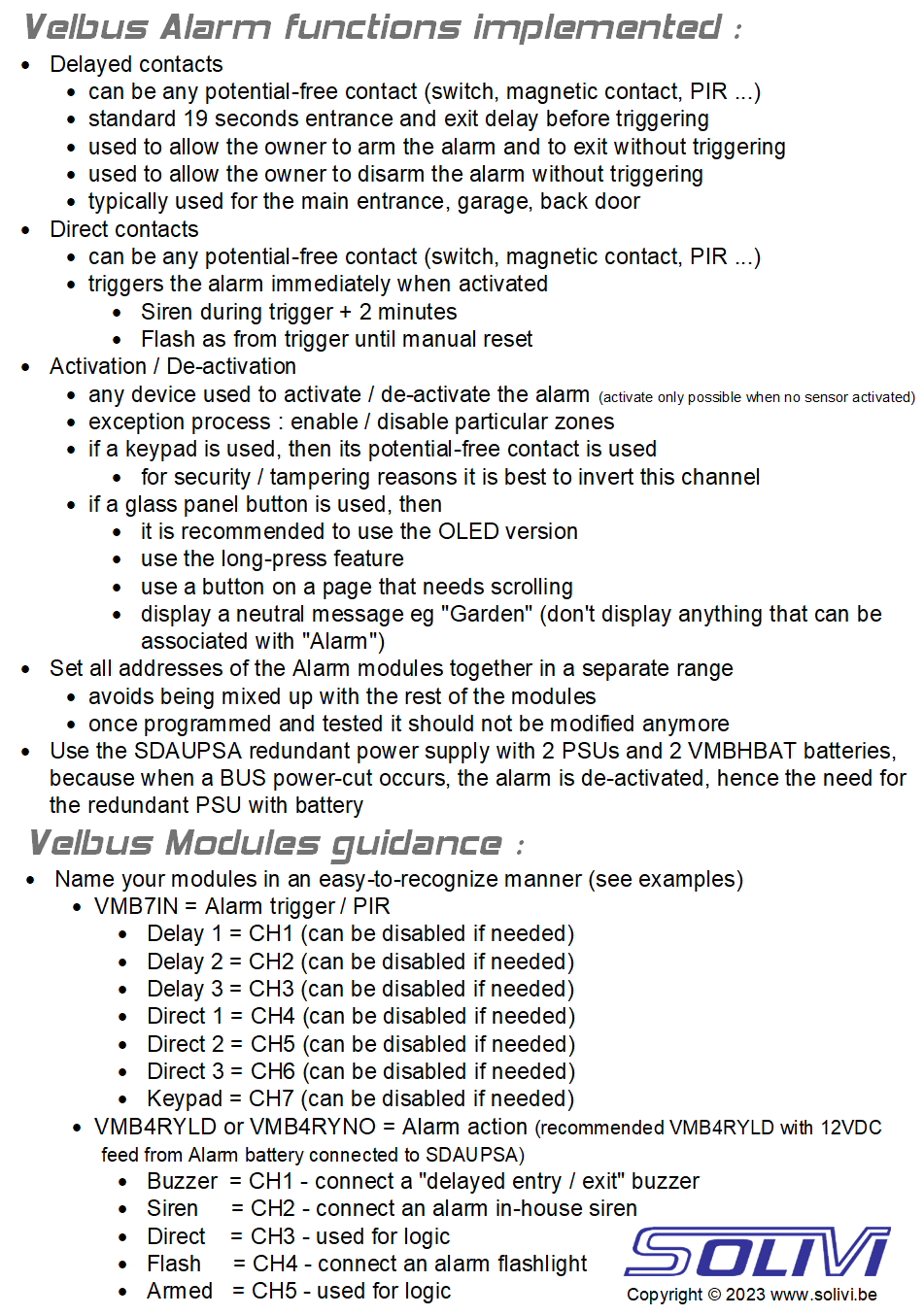

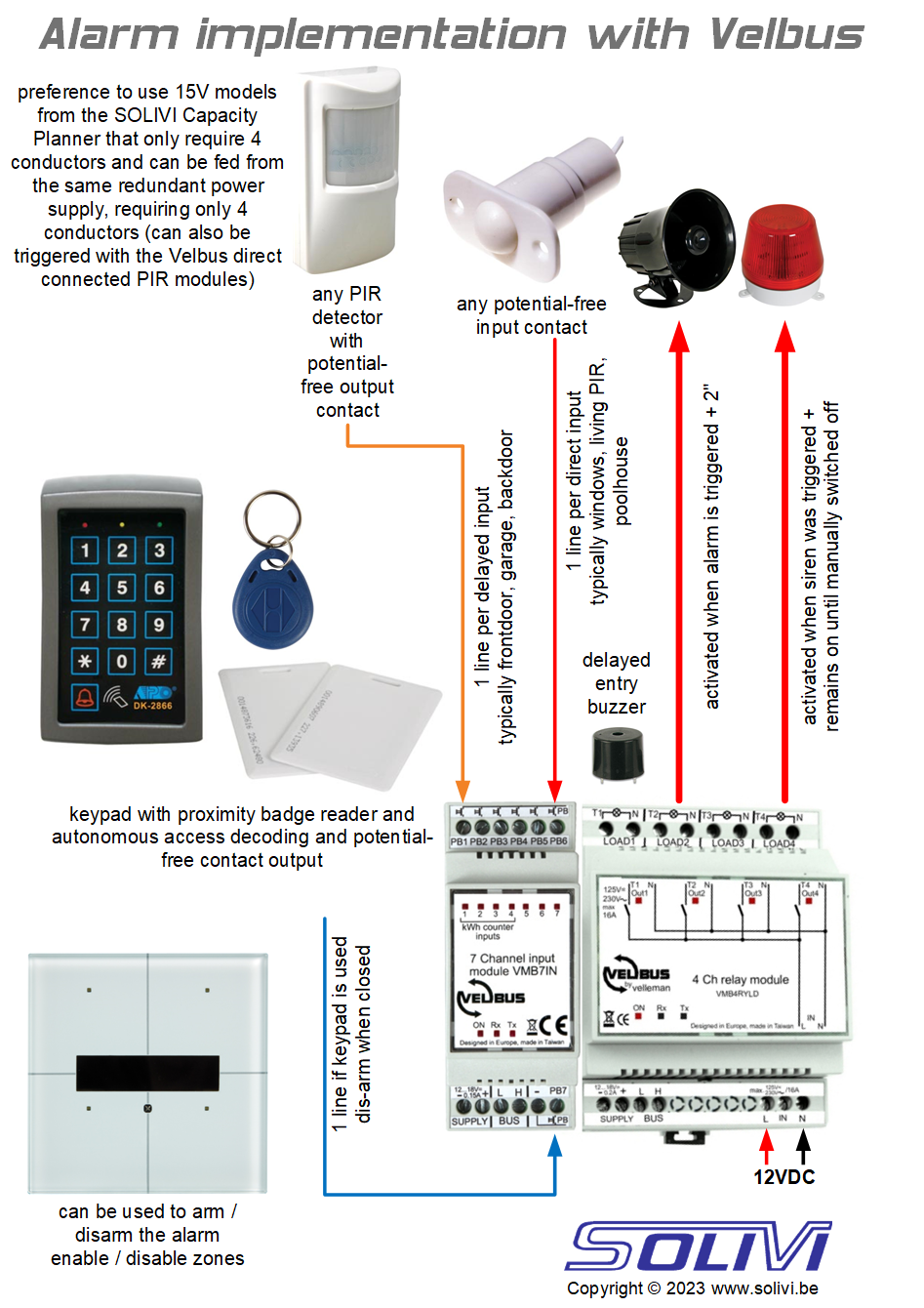

The concept and functions can be seen here :

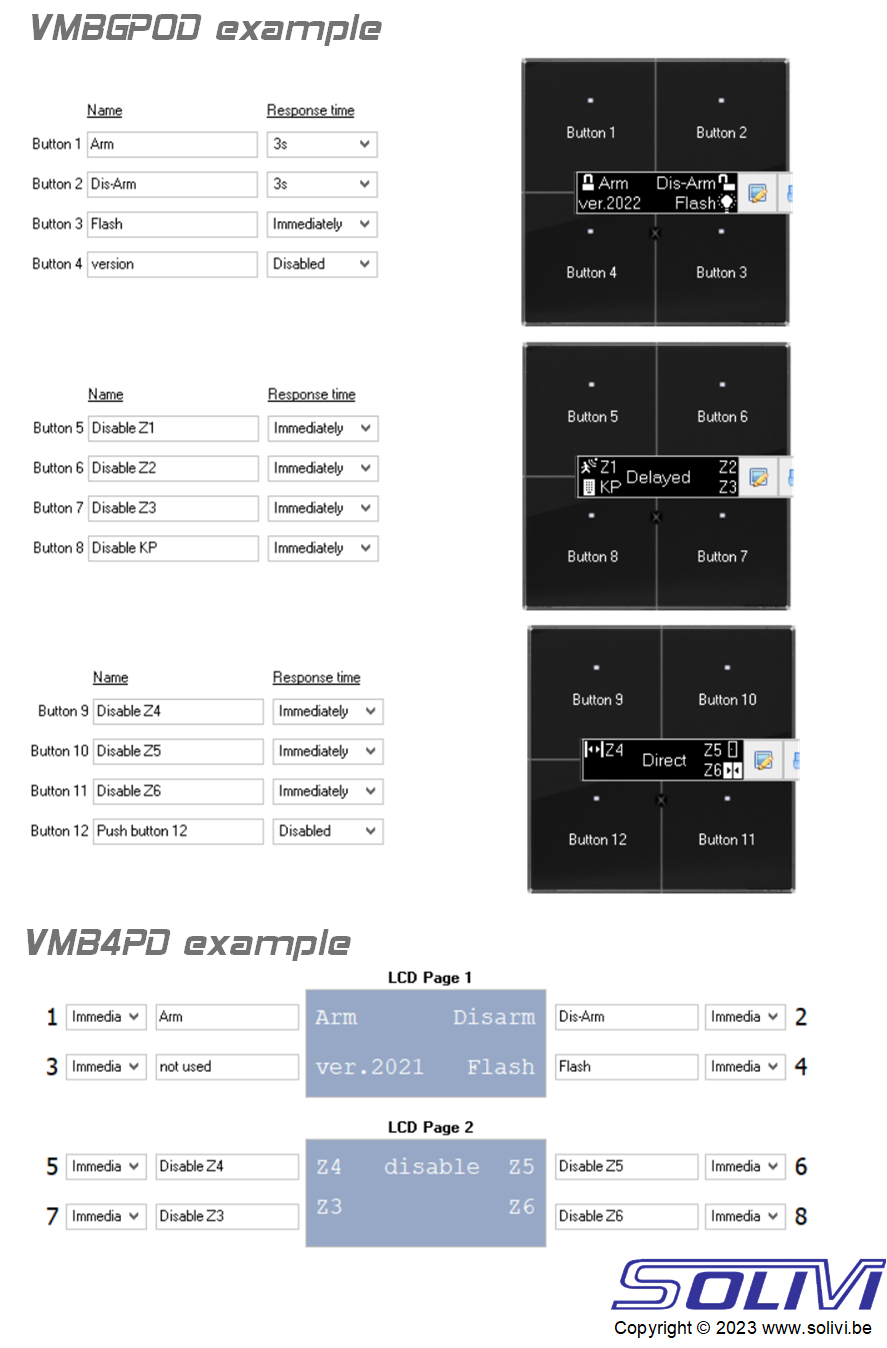

And here are examples how buttons could be looking :

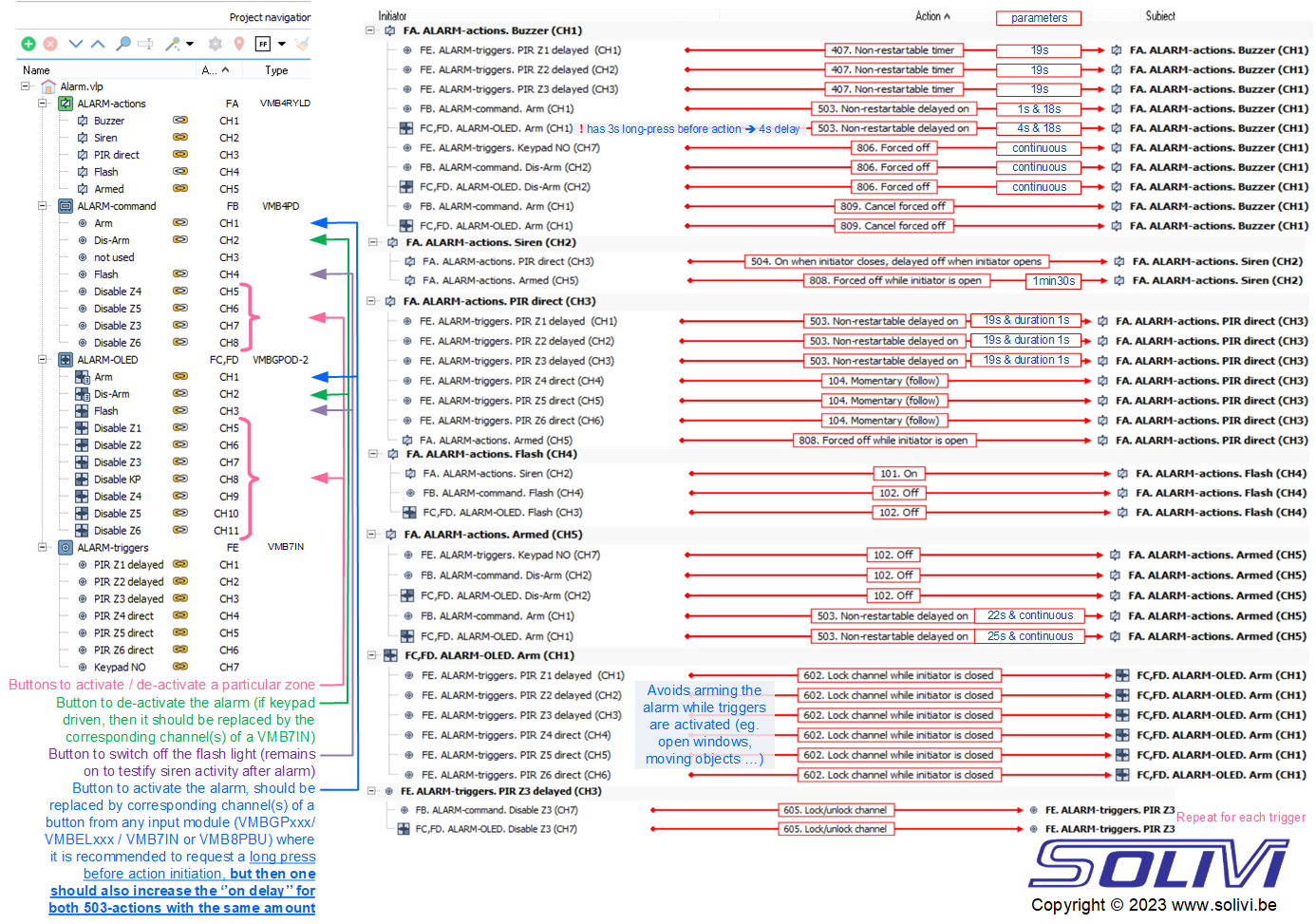

And here is the setup of Velbus actions :
The VMB4RYLD is the only relay used to perform nearly all actions
It activates :
The VMB4PD is only mentioned for backwards compatibility
Best is to put the alarm related buttons on the second page, so that it remains hidden for the unknown/unwanted visitor
The OLED pushbutton display handles most commands, such as :
The VMB7IN is used to capture the detector triggers.
